PV22-6R-CYY
CONN RING CIRC 22-26AWG #6 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

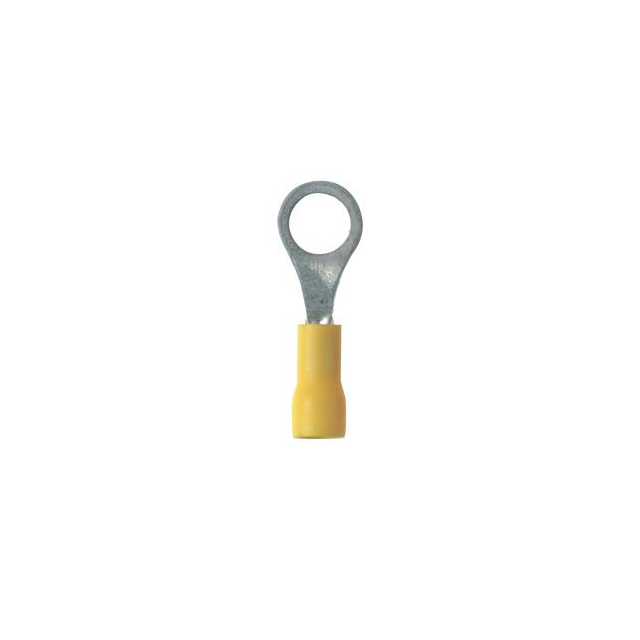

Panduit Corp Pan-Term® PV22-6R-CYY is a yellow, insulated ring terminal connector designed for circular crimp termination. This component features a #6 stud size and is suitable for wire gauges ranging from 22 to 26 AWG. Constructed with a copper contact material and a tin contact finish, it offers a butted seam for robust performance. The overall length is 0.680 inches (17.27mm) with an outer width of 0.210 inches (5.33mm) and a thickness of 0.020 inches (0.51mm). It is designed for free-hanging (in-line) mounting. This component is commonly utilized in industrial automation, telecommunications, and transportation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
