PV22-4R-MYY
CONN RING CIRC 22-26AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

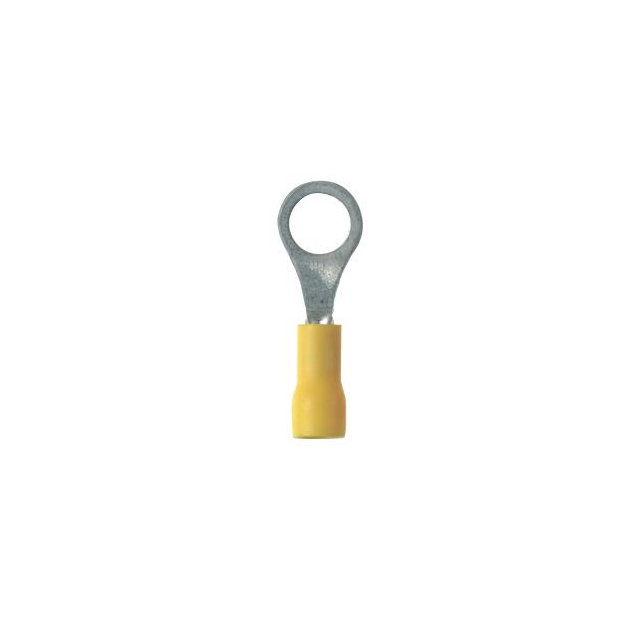

Panduit Corp Pan-Term® PV22-4R-MYY is a yellow, insulated ring terminal designed for efficient wire termination. This circular terminal accommodates wire gauges from 22 to 26 AWG and features a 4 stud size for secure connection. Constructed from copper with a tin contact finish, it utilizes a crimp termination method and a butted seam construction. The overall length is 0.680 inches (17.27mm) with a thickness of 0.020 inches (0.51mm) and an outer width of 0.210 inches (5.33mm). Its free hanging (in-line) mounting type makes it suitable for applications in the automotive and industrial sectors. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
