PV22-4R-MY
CONN RING CIRC 22-26AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

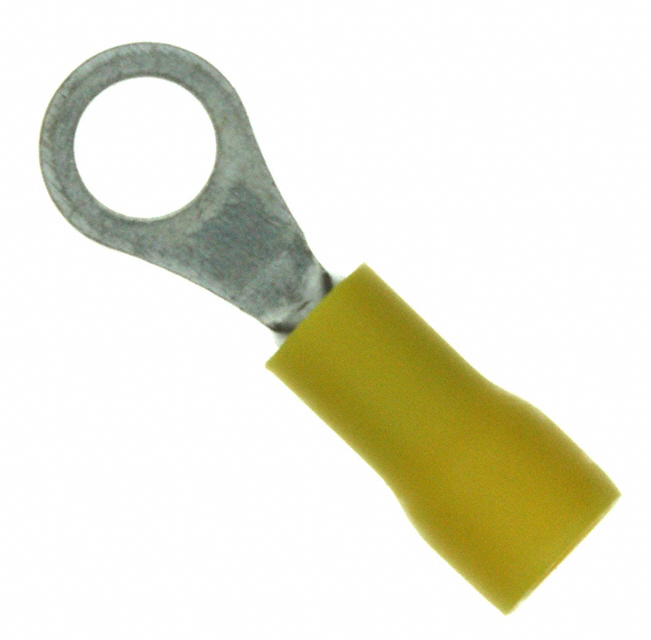

Panduit Corp Pan-Term® PV22-4R-MY is a yellow, insulated circular ring terminal designed for 22-26 AWG wire. This c-UR-us and c-CSA-us listed component features a tin-plated copper contact material and a brazed seam for enhanced durability. The terminal accommodates a #4 stud size and offers a free-hanging, in-line mounting type. Its overall length is 0.680 inches (17.27mm) with a contact thickness of 0.020 inches (0.51mm) and an outer width of 0.210 inches (5.33mm). This component is commonly utilized in industrial automation, telecommunications infrastructure, and power distribution systems requiring reliable electrical connections. The PV22-4R-MY is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
