PV22-4R-CY
CONN RING CIRC 22-26AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

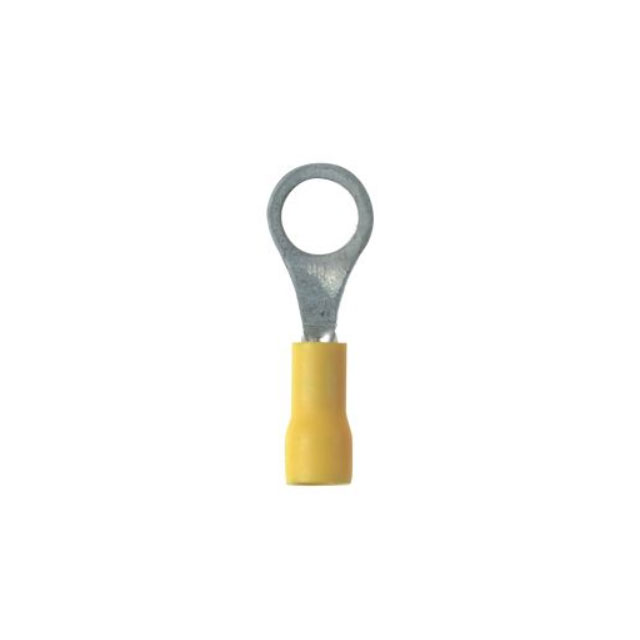

Panduit Corp Pan-Term® PV22-4R-CY is a yellow, insulated ring terminal connector designed for secure crimp termination. This circular terminal accommodates wire gauges from 22-26 AWG and features a 4 stud size for mounting. Constructed with a copper contact material and tin plating for optimal conductivity, the PV22-4R-CY boasts a butted seam construction for reliable performance. Its overall length is 0.680 inches (17.27mm) with a width of 0.210 inches (5.33mm) and a thickness of 0.020 inches (0.51mm). The free hanging (in-line) mounting type makes it suitable for various applications across industrial automation, telecommunications, and automotive sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
