PV22-2R-MYY
CONN RING CIRC 22-26AWG #2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

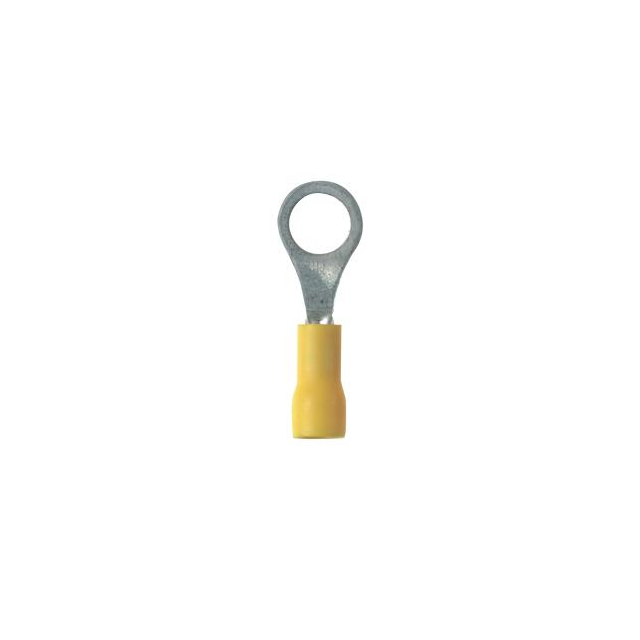

Panduit Corp Pan-Term® PV22-2R-MYY is a yellow, insulated circular ring terminal designed for crimp termination of 22-26 AWG wire. This component features a copper contact material with a tin finish and a butted seam construction. The overall length is 0.680 inches (17.27mm), with a width of 0.210 inches (5.33mm) and a thickness of 0.020 inches (0.51mm). It supports a 2 stud size and is intended for free hanging (in-line) mounting. This terminal is commonly utilized in industrial automation, power distribution, and transportation sectors for reliable electrical connections. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 2 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
