PV22-2R-CYY
CONN RING CIRC 22-26AWG #2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

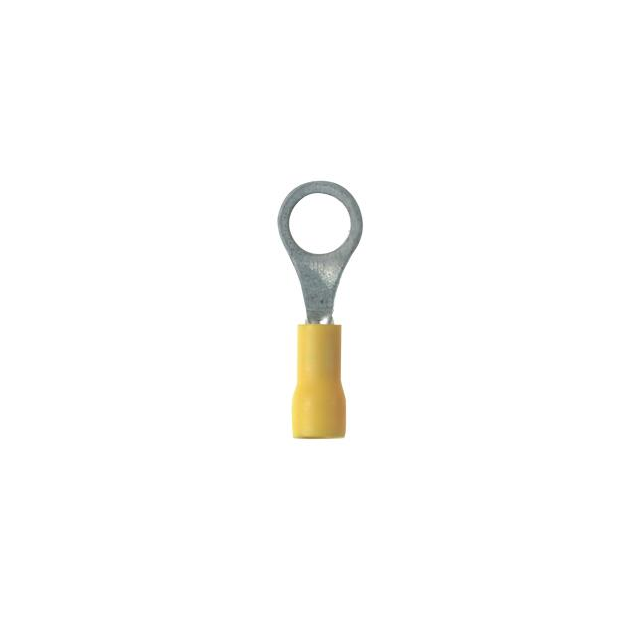

Panduit Corp Pan-Term® PV22-2R-CYY is a yellow, insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 22 to 26 AWG and features a 2 stud configuration with a #2 stud/tab size. Constructed from copper with a tin contact finish, it offers a butted seam for enhanced durability. The overall length is 0.680 inches (17.27mm), with a width of 0.210 inches (5.33mm) and a thickness of 0.020 inches (0.51mm). The PV22-2R-CYY is suitable for free hanging (in-line) mounting and finds application in industrial automation, telecommunications, and automotive sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 2 Stud |
| Length - Overall | 0.680"" (17.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.210"" (5.33mm) |
| Contact Material | Copper |
Request a Quote
