PV22-10R-MY
CONN RING CIRC 22-26AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

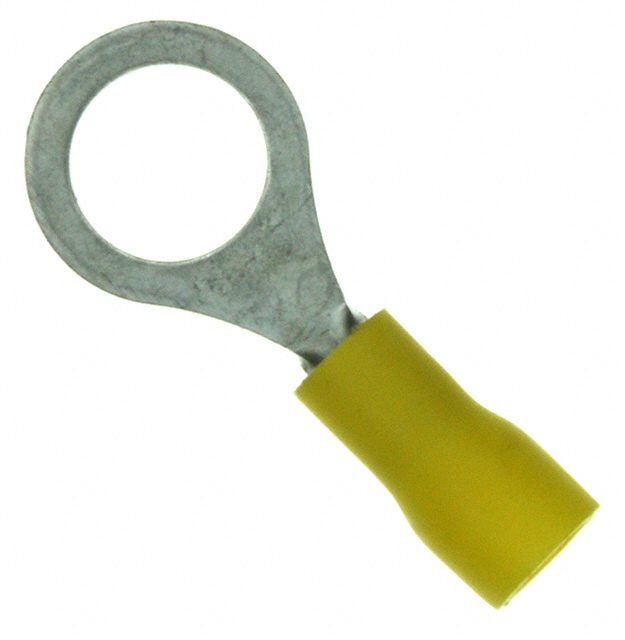

Panduit Corp Pan-Term® Ring Terminal Connector, PV22-10R-MY. This insulated, yellow, circular crimp terminal is designed for #10 stud sizes and accommodates wire gauges from 22 to 26 AWG. Constructed from copper with a tin contact finish, it features a brazed seam for enhanced durability. The free-hanging (in-line) mounting type and 0.780"" (19.81mm) overall length make it suitable for various wiring applications. Its 0.020"" (0.51mm) thickness and 0.320"" (8.13mm) outer width ensure robust connections. Widely utilized in industrial automation, automotive, and telecommunications sectors, this bulk-packaged terminal provides reliable electrical connections.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Copper |
