PV22-10R-C
CONN RING CIRC 22-26AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

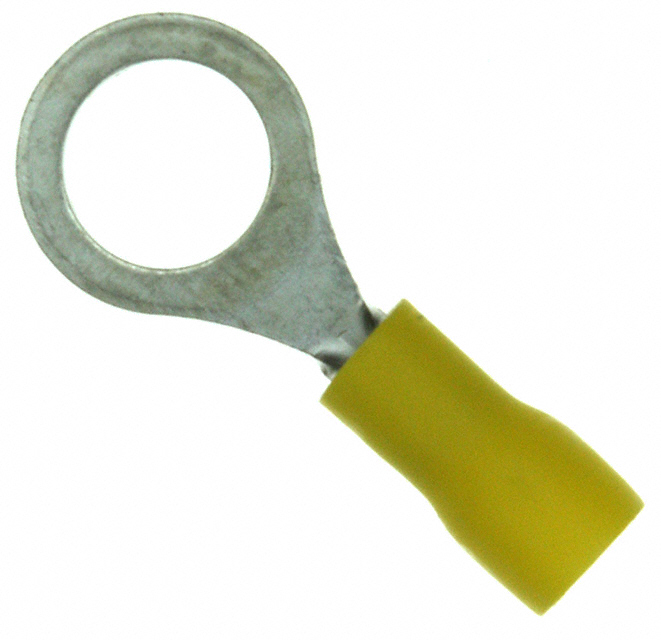

Panduit Corp Pan-Term® PV22-10R-C is a yellow, insulated circular ring terminal designed for crimp termination. This component features a brazed seam for enhanced durability and a tin-plated copper contact material for reliable conductivity. Engineered for wire gauges ranging from 22 to 26 AWG, it accommodates a #10 stud size. The terminal offers a free-hanging, in-line mounting configuration with an overall length of 0.780 inches (19.81mm) and a thickness of 0.020 inches (0.51mm). Its outer edge width measures 0.320 inches (8.13mm). This component is commonly utilized in industrial automation, automotive, and aerospace applications where secure and robust electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Copper |
