PV2-56RX-XY
CONN RING D-SHAPE 2AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

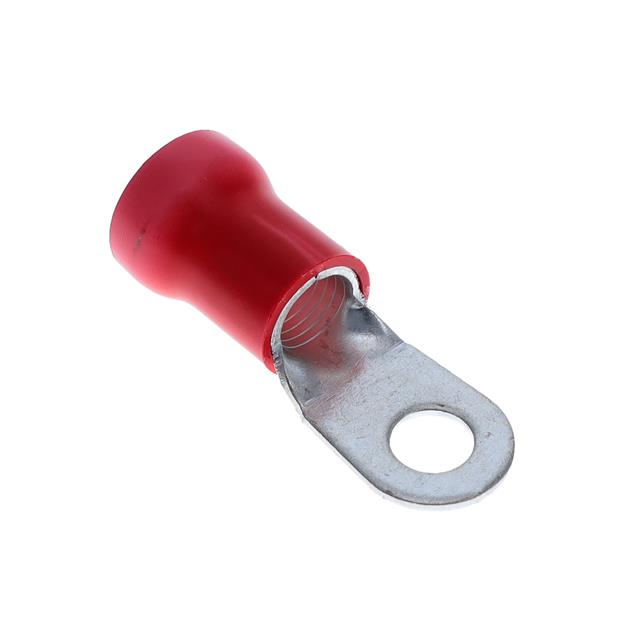

Panduit Corp Pan-Term® PV2-56RX-XY is a red, insulated, D-shaped ring terminal connector designed for 2 AWG wire. Featuring a 0.625" (15.88mm) diameter barrel opening, it accommodates a 5/16" stud size. The terminal boasts a brazed seam for enhanced durability and a tin-plated copper contact for optimal conductivity. Its overall length is 1.940" (49.28mm) with a material thickness of 0.060" (1.52mm). This free-hanging (in-line) mount terminal is suitable for crimp termination. Applications are found in industrial power distribution, automotive, and general electrical wiring systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
