PV2-14R-TY
CONN RING D-SHAPE 2AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

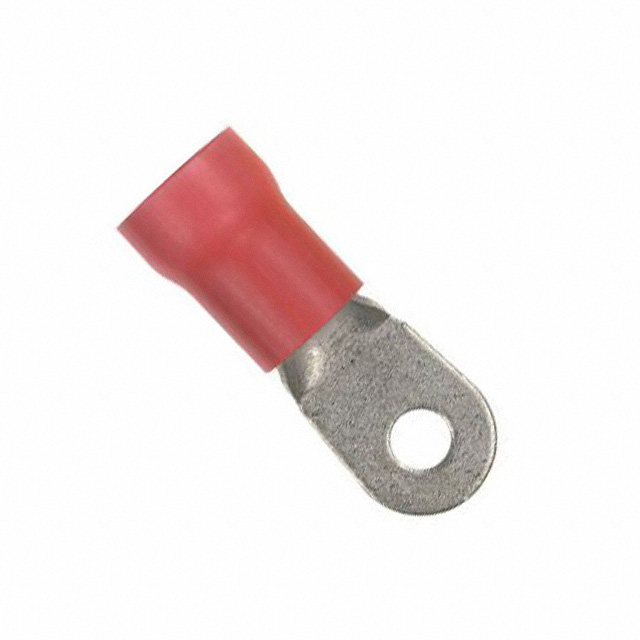

Panduit Corp Pan-Term® PV2-14R-TY is a D-shaped, insulated ring terminal designed for reliable crimp termination. This component accommodates 2 AWG wire and features a 1/4 stud size for secure mounting. Constructed from copper with a tin contact finish for optimal conductivity and corrosion resistance, the PV2-14R-TY boasts a brazed seam for enhanced durability. Its overall length is 1.960 inches (49.78mm), with an outer width of 0.680 inches (17.27mm) and a thickness of 0.060 inches (1.52mm). The free-hanging, in-line mounting type makes it suitable for various electrical connections. This Panduit Corp offering is commonly utilized in industrial automation, power distribution, and automotive applications where robust wire termination is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.960"" (49.78mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
