PV2-10RX-XY
CONN RING D-SHAPE 2AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

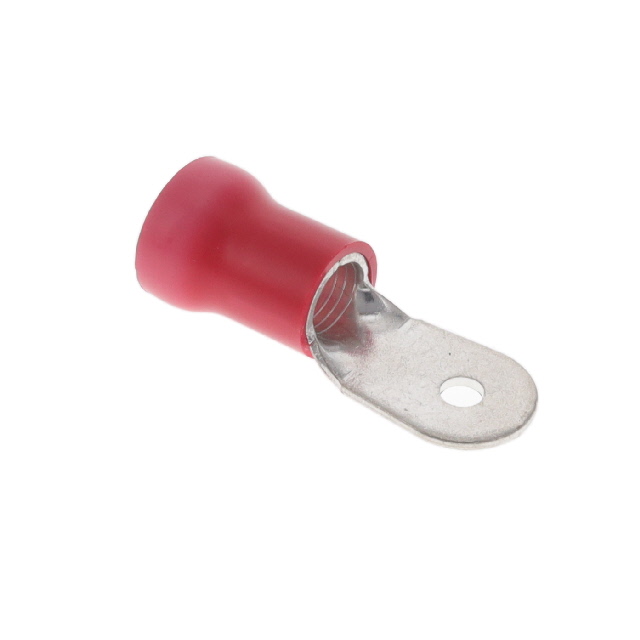

Panduit Corp Pan-Term® PV2-10RX-XY is a red, insulated, D-shaped ring terminal connector designed for 2 AWG wire. This component features a brazed seam for enhanced durability and a tin-plated copper contact for reliable conductivity. The overall length is 1.940 inches (49.28mm) with a thickness of 0.060 inches (1.52mm) and an outer width of 0.680 inches (17.27mm). It is designed for #10 stud size and utilizes a crimp termination method. The free-hanging (in-line) mounting type makes it suitable for applications in industrial automation, power distribution, and electrical infrastructure where secure and robust connections are critical. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.940"" (49.28mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
