PV2-10R-XY
CONN RING FLAT 2AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

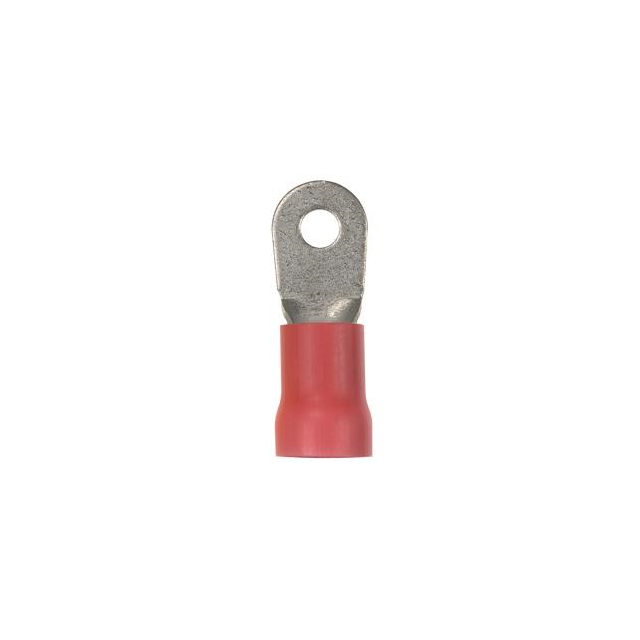

Panduit Corp Pan-Term® PV2-10R-XY is a red, insulated ring terminal connector designed for robust electrical connections. This component features a flat-sided barrel with a 10 stud size and is engineered for crimp termination of 2 AWG wire. Constructed from copper with a tin contact finish, it ensures reliable conductivity and corrosion resistance. The brazed seam construction enhances durability under demanding application conditions. With an overall length of 1.960" (49.78mm) and a width of 0.680" (17.27mm), this terminal provides ample surface area for secure connections. Its free-hanging (in-line) mounting type facilitates straightforward installation in various industrial and commercial applications. This product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Insulated |
| Thickness | 0.060"" (1.52mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.960"" (49.78mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
