PV18-56RX-LY
CONN RING CIRC 18-22AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

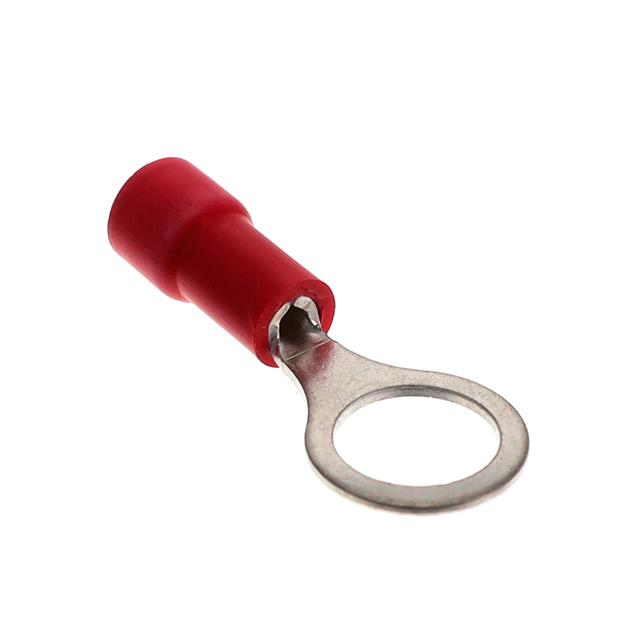

Panduit Corp Pan-Term® PV18-56RX-LY is a red, insulated crimp ring terminal connector designed for 18-22 AWG wire. This circular terminal features a 5/16 stud size and is constructed from copper with a tin contact finish. Key design elements include a brazed seam for enhanced durability and serrated termination to ensure superior wire grip and conductivity. The overall length is 1.170 inches (29.72mm) with an outer width of 0.460 inches (11.68mm) and a material thickness of 0.030 inches (0.76mm). This component is suitable for free-hanging (in-line) mounting applications. It is commonly utilized in industrial automation, power distribution, and automotive sectors. Packaging is supplied in bulk.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.170"" (29.72mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
