PV18-14RX-CY
CONN RING CIRC 18-22AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

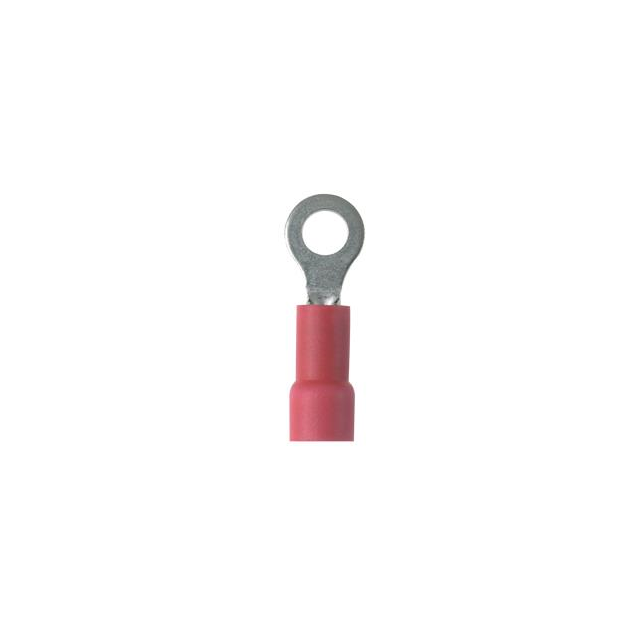

Panduit Corp Pan-Term® PV18-14RX-CY offers a red, insulated circular ring terminal connector designed for 18-22 AWG wire. This crimp-style terminal features a 1/4 stud size and a tin contact finish over a copper contact material. Key design elements include a brazed seam for enhanced durability and serrated termination for improved wire grip. The overall length measures 1.170 inches (29.72mm) with a width of 0.460 inches (11.68mm) and a thickness of 0.030 inches (0.76mm). This component is suitable for free-hanging (in-line) mounting configurations and is commonly utilized in industrial automation, telecommunications, and automotive electrical systems. The PV18-14RX-CY is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.170"" (29.72mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
Request a Quote
