PV18-10R-E
CONN RING CIRC 18-22AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

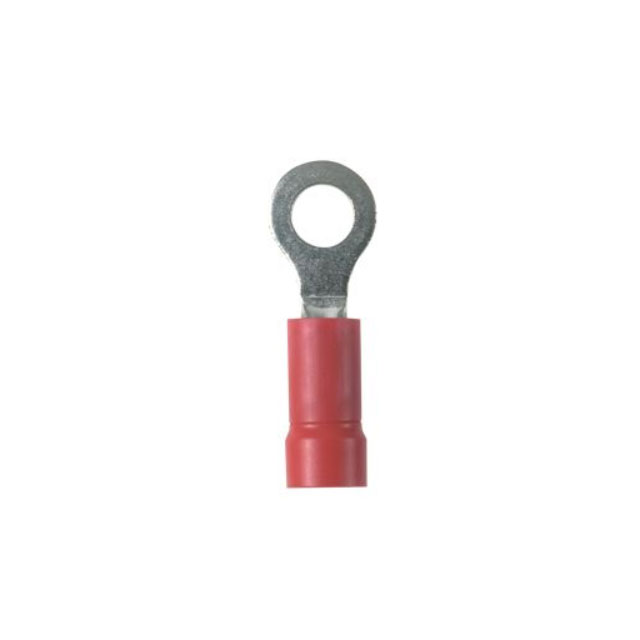

Panduit Corp Pan-Term® PV18-10R-E is a red, insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 18 to 22 AWG and features a #10 stud size for secure connection. Constructed with a copper contact material and a tin contact finish, it offers reliable conductivity. Key features include a brazed seam for enhanced durability and serrated termination for improved wire grip. The overall length measures 0.940 inches (23.88mm) with an outer width of 0.310 inches (7.87mm) and a thickness of 0.032 inches (0.81mm). Its free hanging (in-line) mounting type makes it suitable for various applications, including industrial automation, power distribution, and automotive electronics. This product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.940"" (23.88mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
