PV14-8RX-C
CONN RING CIRC 14-16AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

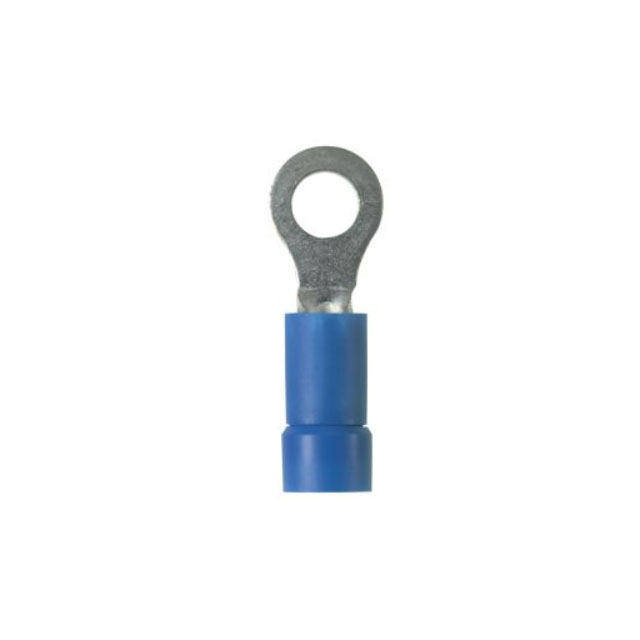

Panduit Corp Pan-Term® PV14-8RX-C is a blue, insulated circular ring terminal designed for 14-16 AWG wire. This component features a brazed seam construction and serrated termination for enhanced electrical contact and pull-out resistance. The terminal accommodates an #8 stud size and is manufactured from copper with a tin contact finish. Its free-hanging, in-line mounting type and crimp termination method make it suitable for demanding applications. The overall length is 0.960 inches (24.38mm) with a width of 0.310 inches (7.87mm) and a thickness of 0.032 inches (0.81mm). This Panduit Corp product is commonly utilized in industrial automation, automotive, and telecommunications sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
