PV14-38RX-L
CONN RING CIRC 14-16AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

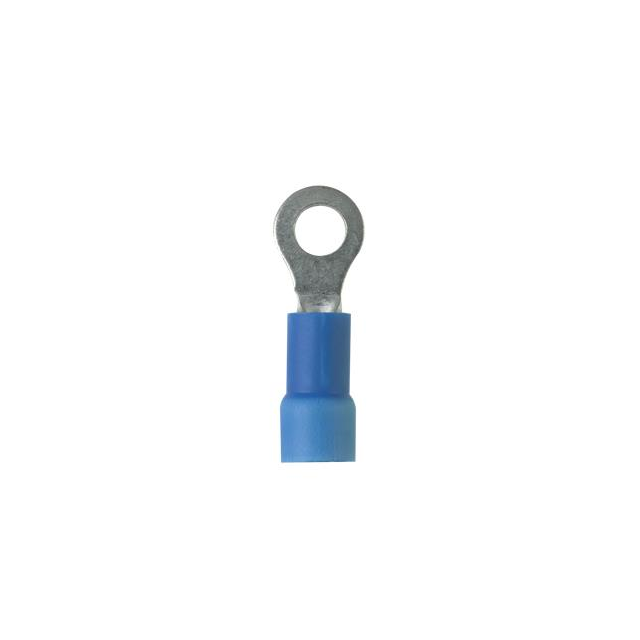

Panduit Corp Pan-Term® PV14-38RX-L is a blue, insulated circular ring terminal designed for 14-16 AWG wire. This bulk-packaged component features a 3/8 stud size and a free-hanging, in-line mounting type. The terminal is constructed from copper with a tin contact finish for reliable conductivity. Key design elements include a brazed seam and serrated termination for enhanced wire grip and durability. The overall length is 1.250 inches (31.75mm) with an outer width of 0.530 inches (13.46mm) and a thickness of 0.032 inches (0.81mm). This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.250"" (31.75mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.530"" (13.46mm) |
| Contact Material | Copper |
