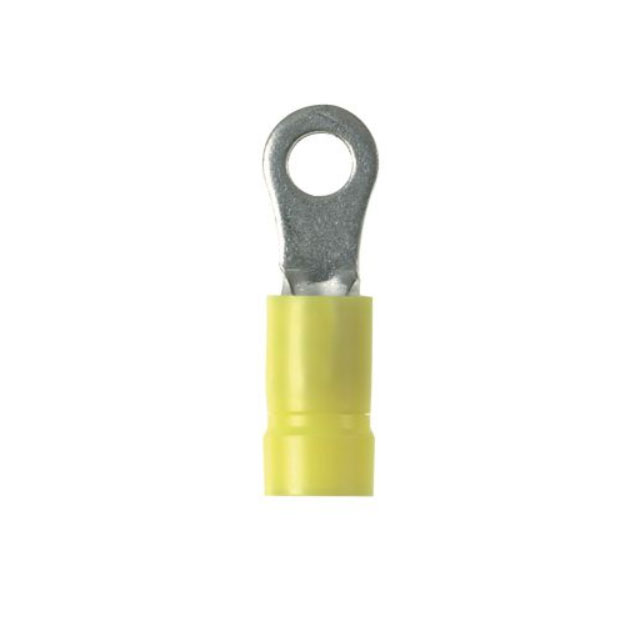

PV12-8HDR-D
CONN RING CIRC 12-16AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® PV12-8HDR-D is a heavy-duty, insulated circular ring terminal designed for crimp termination of wire gauges 12-16 AWG. Featuring a brazed seam for enhanced durability and serrated termination for superior electrical contact, this component is constructed from copper with a tin contact finish. The terminal accommodates an 8 stud size and offers a free-hanging (in-line) mounting type. With an overall length of 1.050" (26.67mm), a thickness of 0.050" (1.27mm), and a width of 0.310" (7.87mm), the PV12-8HDR-D is suitable for demanding applications in industries such as automotive, industrial automation, and electrical infrastructure where reliable connections are critical. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
