PV12-6HDR-D
CONN RING CIRC 12-16AWG #6 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

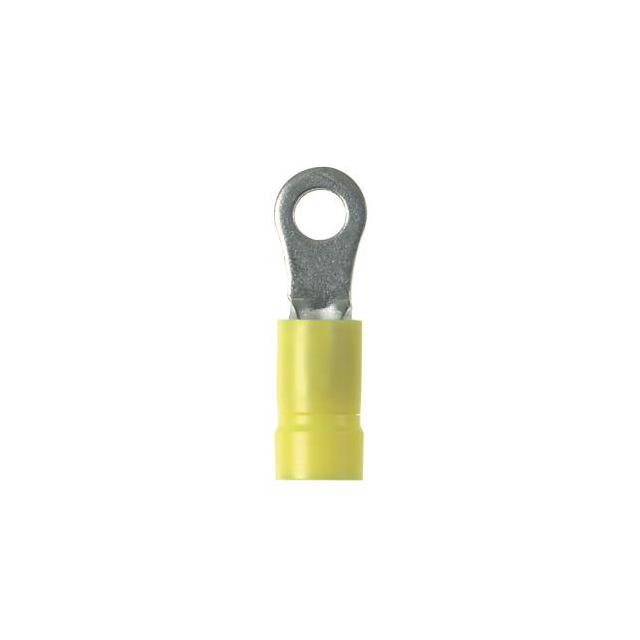

Panduit Corp Pan-Term® Ring Terminal Connector, part number PV12-6HDR-D. This insulated circular ring terminal accommodates 12-16 AWG wire with a #6 stud size. Constructed from copper with a tin contact finish, it features a brazed seam and serrated termination for enhanced reliability. The heavy-duty design is suitable for inline, free-hanging mounting. Overall length is 1.050 inches (26.67mm), with a width of 0.310 inches (7.87mm) and a thickness of 0.050 inches (1.27mm). This component is commonly utilized in industrial automation, power distribution, and telecommunications applications. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
Request a Quote
