PV12-56HDR-L
CONN RING CIRC 12-16AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

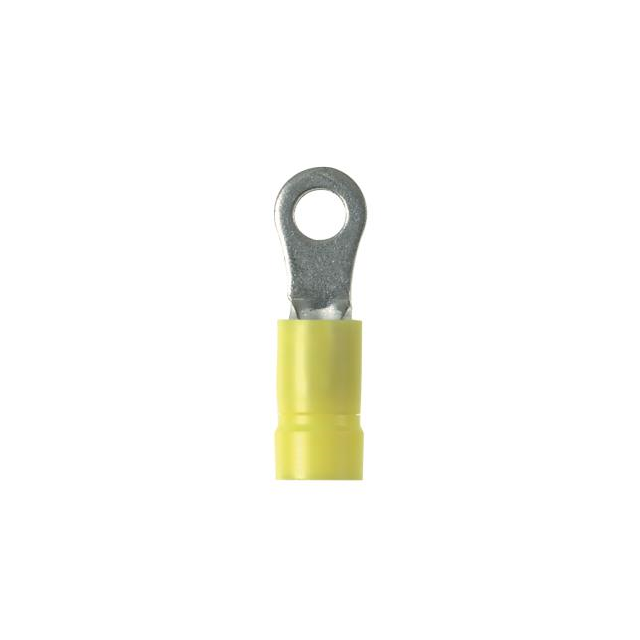

The Panduit Corp Pan-Term® PV12-56HDR-L is a heavy-duty, insulated ring terminal designed for reliable electrical connections. This circular terminal accommodates wire gauges from 12 to 16 AWG and features a 5/16 stud size for secure mounting. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The terminal is engineered with a brazed seam for enhanced durability and serrated termination for superior wire grip. Its free-hanging, in-line mounting type facilitates straightforward installation in various applications. This component is widely utilized in industrial automation, power distribution, and automotive sectors where robust and dependable connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.230"" (31.24mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Contact Material | Copper |
