PV12-38HDRB-2K
CONN RING CIRC 12-16AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

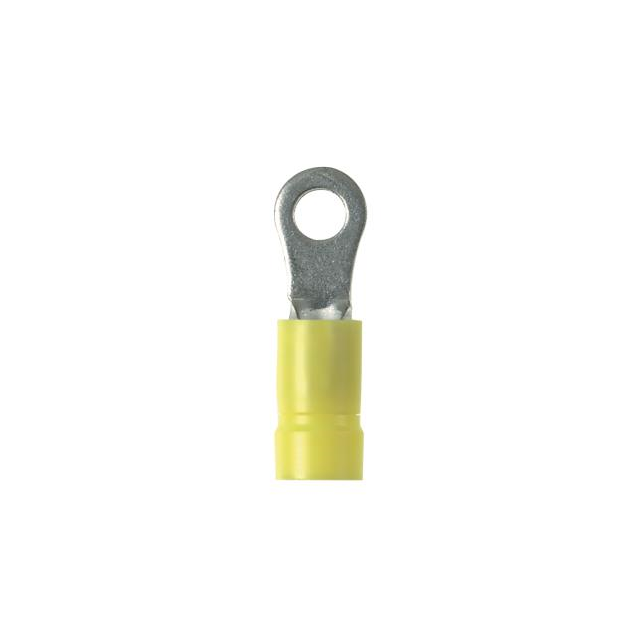

Panduit Corp Pan-Term® PV12-38HDRB-2K is a heavy-duty, yellow insulated circular ring terminal designed for 12-16 AWG wire. This component features a 3/8 stud size and a tin-plated copper contact material for reliable conductivity. The butted seam construction ensures robustness in demanding applications. With a free-hanging, in-line mounting type and a crimp termination, this terminal is suitable for secure connections. Its dimensions include an overall length of 1.300" (33.02mm) and a width of 0.580" (14.73mm), with a contact thickness of 0.050" (1.27mm). This Panduit Corp terminal is commonly utilized in industrial automation, power distribution, and heavy equipment manufacturing. It is supplied on tape and reel (TR).
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Heavy Duty |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.300"" (33.02mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
