PV12-38HDR-L
CONN RING CIRC 12-16AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

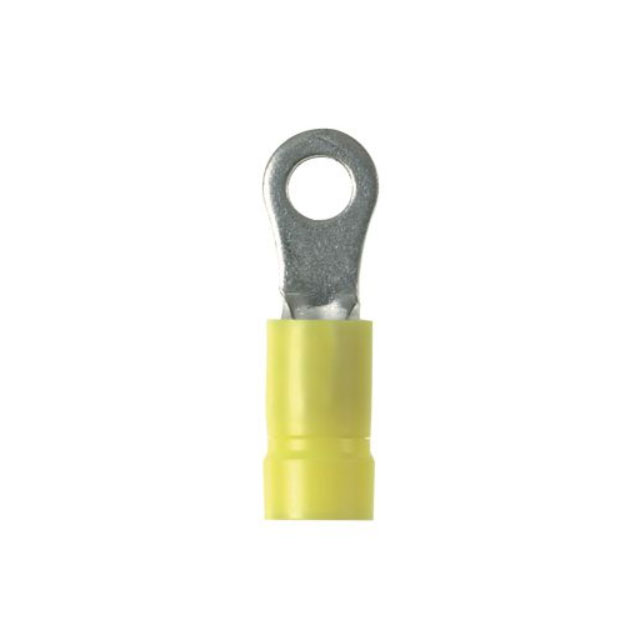

Panduit Corp Pan-Term® PV12-38HDR-L is a heavy-duty, insulated ring terminal connector designed for 12-16 AWG wire. This circular terminal features a 3/8 stud size and a crimp termination method, ensuring a secure and reliable electrical connection. The contact is constructed from copper with a tin plating for excellent conductivity and corrosion resistance. Key features include a brazed seam for enhanced durability and serrated termination for superior wire grip. The overall length is 1.310 inches (33.27mm) with a width of 0.580 inches (14.73mm) and a thickness of 0.050 inches (1.27mm). This component is suitable for free-hanging (in-line) mounting applications. Its robust construction makes it ideal for use in demanding industrial, automotive, and electrical infrastructure environments. The PV12-38HDR-L is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.310"" (33.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
