PV12-10HDR-L
CONN RING CIRC 12-16AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

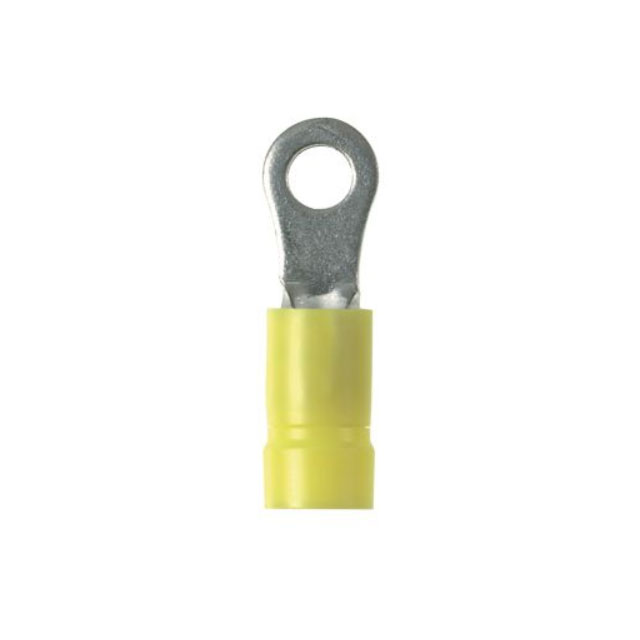

Panduit Corp Pan-Term® Ring Terminal Connector, PV12-10HDR-L. This yellow, insulated circular terminal is designed for 12-16 AWG wire, accommodating a #10 stud size. Engineered with a brazed seam and heavy-duty construction, it ensures reliable crimp termination. The copper contact material with a tin finish provides excellent conductivity and corrosion resistance. Featuring serrated termination for enhanced grip, this component offers a robust solution for demanding applications. Its free-hanging (in-line) mounting type and 1.080" overall length make it suitable for various industrial and commercial wiring systems. Typical applications include power distribution, motor controls, and general electrical infrastructure in sectors such as automotive, industrial automation, and telecommunications.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.080"" (27.43mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
