PV10-56RX-D
CONN RING CIRC 10-12AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

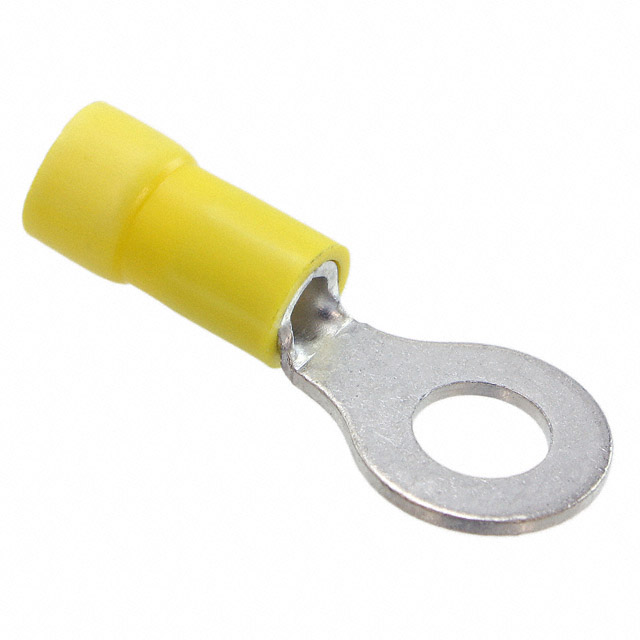

Panduit Corp Pan-Term® PV10-56RX-D is an insulated, circular ring terminal designed for 10-12 AWG wire. This component features a 5/16 stud size with a tin-plated copper contact material for optimal conductivity and corrosion resistance. The terminal is constructed with a brazed seam and serrated termination for secure wire grip and reliable crimp performance. Its free-hanging (in-line) mounting type facilitates straightforward installation in various applications. The overall length is 1.290" (32.77mm) with a width of 0.520" (13.21mm) and a thickness of 0.040" (1.02mm). This Panduit Corp component is commonly utilized in industrial automation, power distribution, and automotive electrical systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.290"" (32.77mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Contact Material | Copper |
