PV10-38R-E
CONN RING CIRC 10-12AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

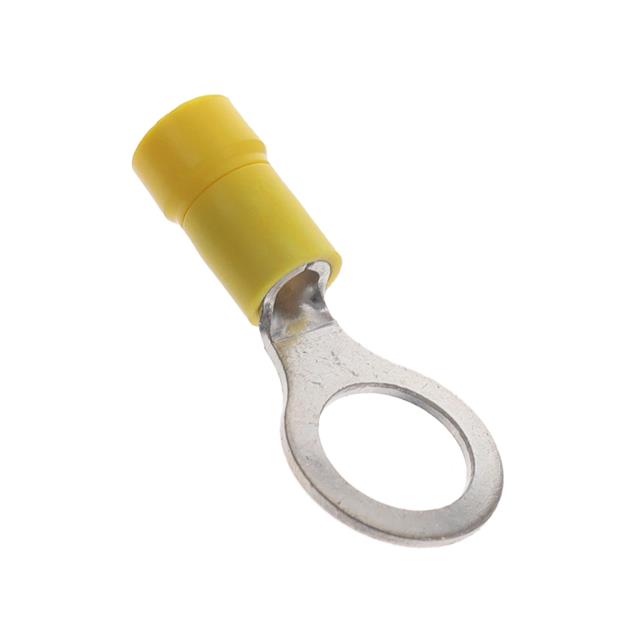

Panduit Corp Pan-Term® PV10-38R-E is a yellow, insulated ring terminal connector designed for 10-12 AWG wire. This circular terminal features a 3/8 stud size and a free-hanging, in-line mounting type. Constructed from copper with a tin contact finish, it utilizes a brazed seam for enhanced durability. The overall length is 1.310 inches (33.27mm) with a thickness of 0.040 inches (1.02mm) and an outer width of 0.580 inches (14.73mm). Termination is achieved via crimping. This component is commonly utilized in industrial automation, power distribution, and transportation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.310"" (33.27mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
