PV10-10R-E
CONN RING CIRC 10-12AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

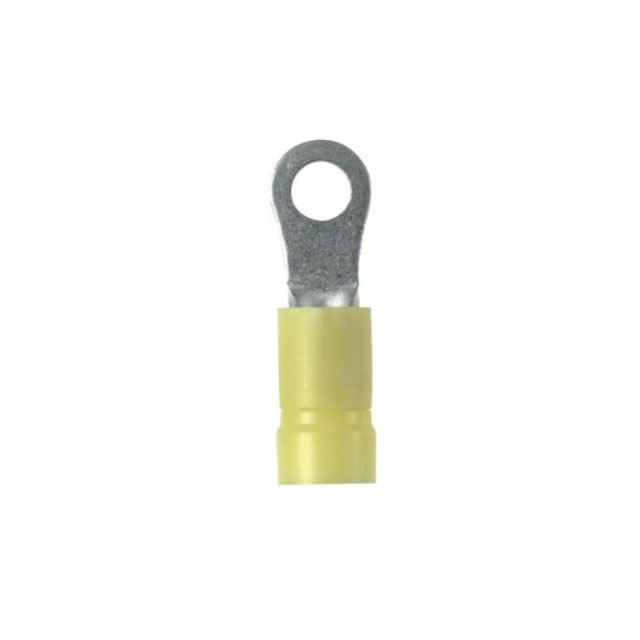

Panduit Corp Pan-Term® PV10-10R-E is a yellow, insulated circular ring terminal designed for crimp termination. This component features a brazed seam for enhanced durability and a tin-plated copper contact for excellent conductivity. Engineered for wire gauges 10-12 AWG, it accommodates a #10 stud size, with an overall length of 1.050 inches (26.67mm) and a width of 0.310 inches (7.87mm). The terminal has a thickness of 0.040 inches (1.02mm) and is suitable for free-hanging, in-line mounting. This Panduit Corp component is widely utilized in industrial automation, power distribution, and automotive applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
