PNF14-56R-C
CONN RING CIRC 14-16AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

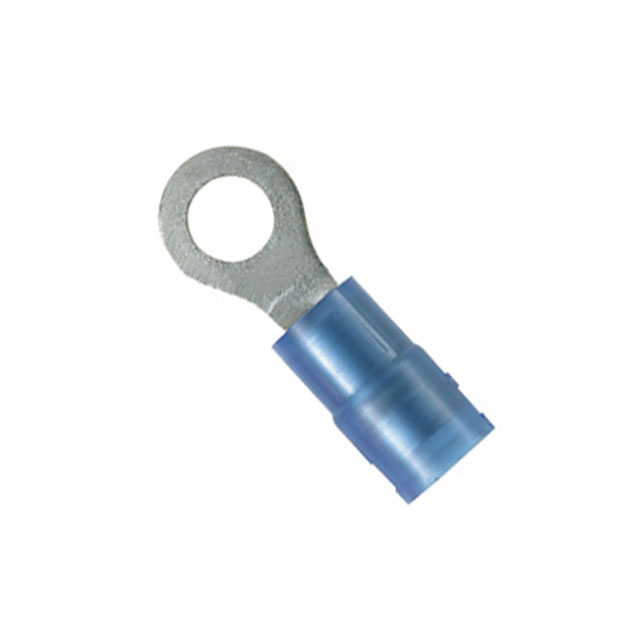

Panduit Corp Pan-Term® PNF14-56R-C is a circular, insulated ring terminal designed for reliable crimp termination. This component accommodates wire gauges from 14 to 16 AWG and features a 5/16 stud size for secure connection. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The terminal incorporates serrated features to enhance wire retention during crimping. With an overall length of 1.060 inches and a width of 0.460 inches, it is suitable for free-hanging (in-line) mounting applications. The PNF14-56R-C is widely utilized in industrial automation, power distribution, and automotive electrical systems where robust and dependable connections are critical. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.060"" (26.92mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
