PNF10-38R-D
CONN RING CIRC 10-12AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

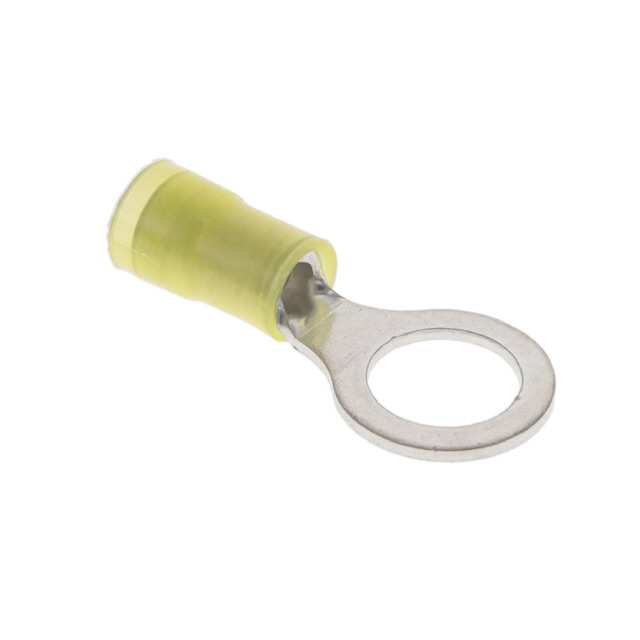

Panduit Corp Pan-Term® PNF10-38R-D is a yellow, insulated ring terminal connector designed for 10-12 AWG wire. This circular terminal features a 3/8 stud size and a free-hanging (in-line) mounting type. The contact material is copper with a tin contact finish for enhanced conductivity. Key features include serrated termination for improved electrical performance. The overall length is 1.290 inches (32.77mm) with a thickness of 0.040 inches (1.02mm) and an outer width of 0.580 inches (14.73mm). This component is suitable for crimp termination and is supplied in bulk packaging. Applications for this terminal include industrial automation, power distribution systems, and general electrical wiring.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.290"" (32.77mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
