PN22-10R-M
CONN RING CIRC 22-26AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

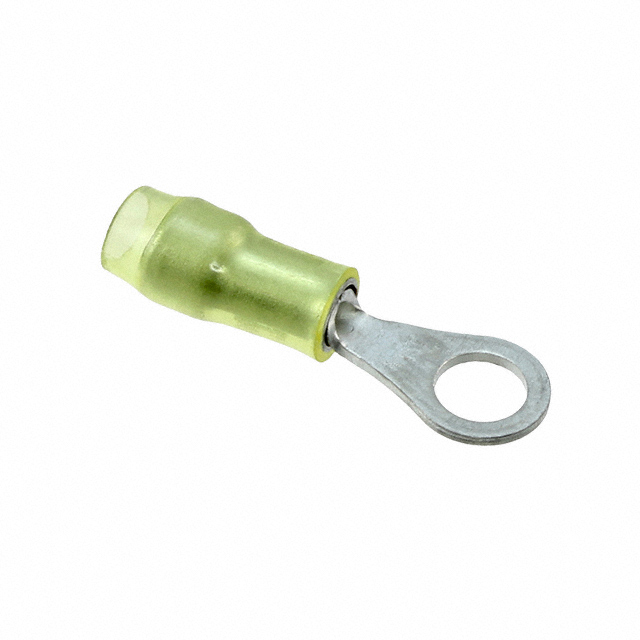

Panduit Corp Pan-Term® Ring Terminal Connector, part number PN22-10R-M. This insulated, circular crimp terminal is designed for wire gauges 22-26 AWG, accommodating a #10 stud size. Constructed from copper with a tin contact finish, it features a free-hanging (in-line) mounting type. The overall length is 0.780 inches (19.81mm), with a width of 0.310 inches (7.87mm) and a thickness of 0.020 inches (0.51mm). This component is suitable for applications in industrial automation, telecommunications, and power distribution. Packaging is provided in bulk.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
