PN18-8R-E
CONN RING CIRC 18-22AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

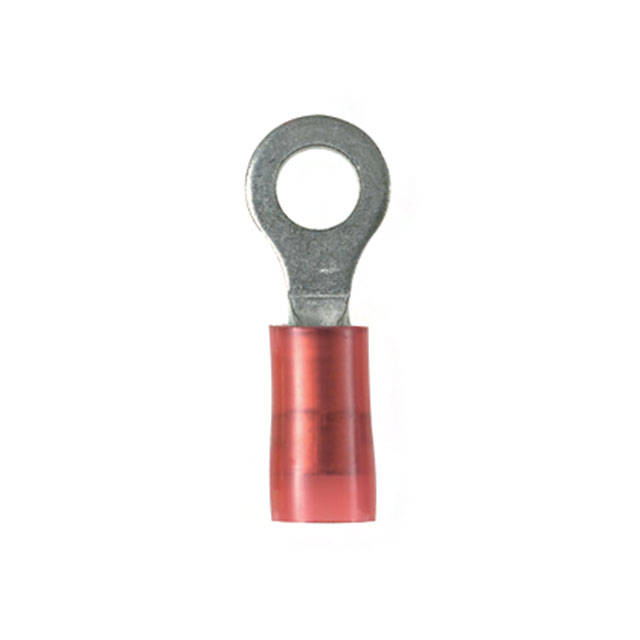

Panduit Corp Pan-Term® PN18-8R-E is an insulated, circular crimp ring terminal designed for 18-22 AWG wire. Featuring a tin-plated copper contact with serrated termination for enhanced grip, this component offers a reliable connection for #8 stud sizes. The overall length is 0.310 inches (7.87mm) with a material thickness of 0.032 inches (0.81mm). Its free-hanging (in-line) mounting type and red insulation make it suitable for various applications, including automotive, industrial automation, and telecommunications equipment where secure wire termination is critical. Packaged in bulk for efficient inventory management.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.310"" (7.87mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
