PN14-6RN-3K
CONN RING CIRC 14-16AWG #6 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

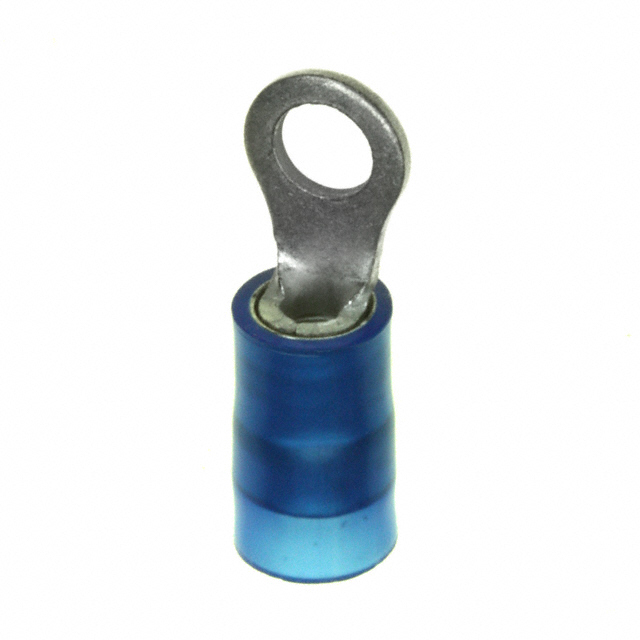

Panduit Corp Pan-Term® PN14-6RN-3K is a blue insulated circular ring terminal designed for crimp termination. This component accommodates wire gauges from 14 to 16 AWG and features a #6 stud size. Constructed from tin-plated copper, it offers excellent conductivity and corrosion resistance. The terminal's overall length is 0.760 inches (19.30mm) with an outer width of 0.250 inches (6.35mm) and a thickness of 0.031 inches (0.79mm). Serrated termination ensures secure wire grip. The free-hanging, in-line mounting type makes it suitable for various electrical wiring applications. This product is supplied on tape and reel for efficient automated assembly. It finds application in industries such as automotive, industrial automation, and telecommunications.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
