PN14-4R-3K
CONN RING CIRC 14-16AWG #4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

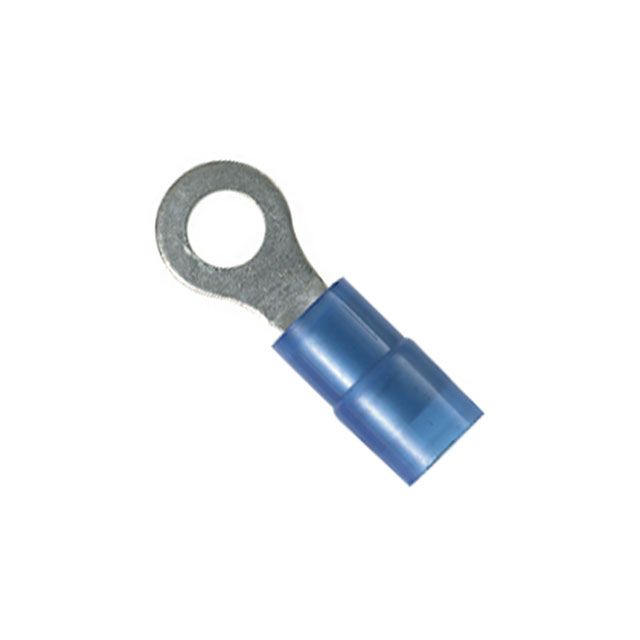

Panduit Corp Pan-Term® PN14-4R-3K is an insulated ring terminal designed for reliable electrical connections. This circular terminal accommodates wire gauges from 14 to 16 AWG and features a #4 stud size for secure mounting. Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The terminal's design includes serrated termination for enhanced wire grip and a free-hanging, in-line mounting type. The blue insulation provides clear visual identification. With an overall length of 0.760 inches and a thickness of 0.031 inches, this component is suitable for demanding applications in industrial automation, power distribution, and telecommunications. It is supplied on tape and reel for efficient assembly processes.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
