PN14-14RX-L
CONN RING CIRC 14-16AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

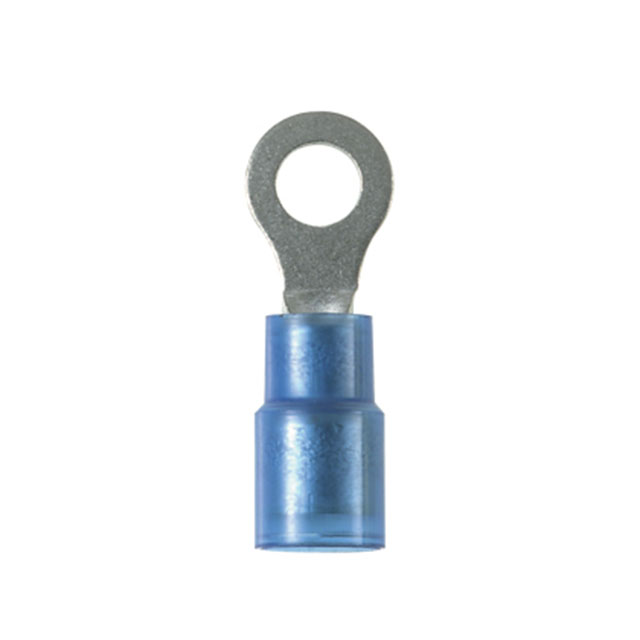

Panduit Corp Pan-Term® Ring Terminal Connector, PN14-14RX-L, is a circular, insulated crimp terminal designed for 14-16 AWG wire. This blue, tinned copper ring terminal features a 1/4 stud size and a serrated termination for enhanced conductivity and secure connection. With an overall length of 1.130 inches (28.70mm) and a width of 0.460 inches (11.68mm), it offers a robust solution for inline, free-hanging applications. The contact material is copper with a tin plating for corrosion resistance, and the insulation provides electrical protection. This component is widely utilized in industrial automation, power distribution, and telecommunications sectors where reliable electrical connections are critical. The terminal thickness is 0.032 inches (0.81mm). Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.130"" (28.70mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
