PN14-14R-E
CONN RING CIRC 14-16AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

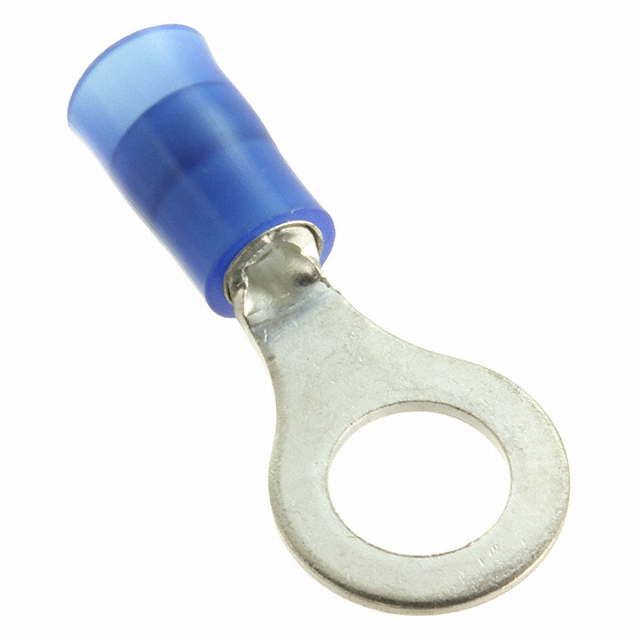

The Panduit Corp Pan-Term® PN14-14R-E is a blue, insulated ring terminal connector designed for 14-16 AWG wire. Featuring a 1/4 stud size and a circular terminal type, this component utilizes a crimp termination method. The copper contact material is finished with tin for enhanced conductivity, and the serrated termination ensures a secure connection. With an overall length of 1.050 inches and a width of 0.460 inches, it offers a 0.031-inch thickness. This free-hanging, in-line component is suitable for various industrial applications, including automation and power distribution systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
