PN14-10R-E
CONN RING CIRC 14-16AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

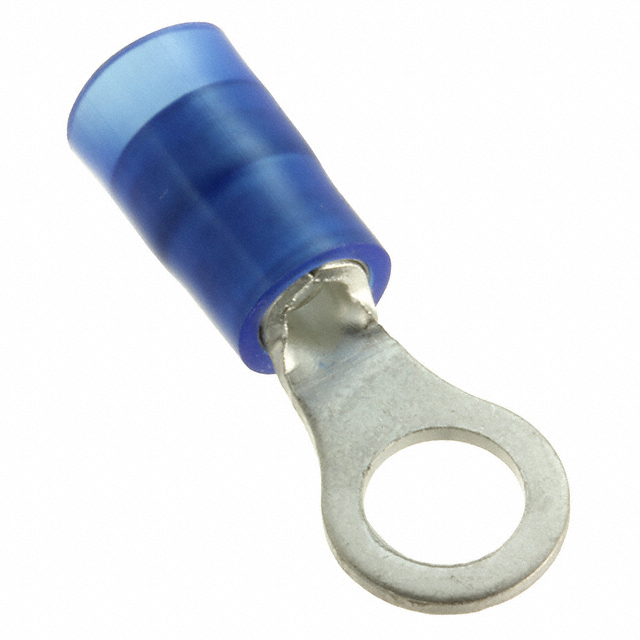

Panduit Corp Pan-Term® PN14-10R-E is a blue, insulated ring terminal connector designed for crimp termination. This circular terminal accommodates wire gauges from 14 to 16 AWG and features a #10 stud size. The overall length is 0.850" (21.59mm) with a width of 0.310" (7.87mm) and a thickness of 0.031" (0.79mm). Constructed from copper with a tin contact finish, this component includes serrated termination for enhanced wire grip. The free hanging (in-line) mounting type makes it suitable for various industrial applications. Packaged in bulk, this terminal is a reliable choice for robust electrical connections.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.850"" (21.59mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
