PN12-8HDR-2K
CONN RING CIRC 12-16AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

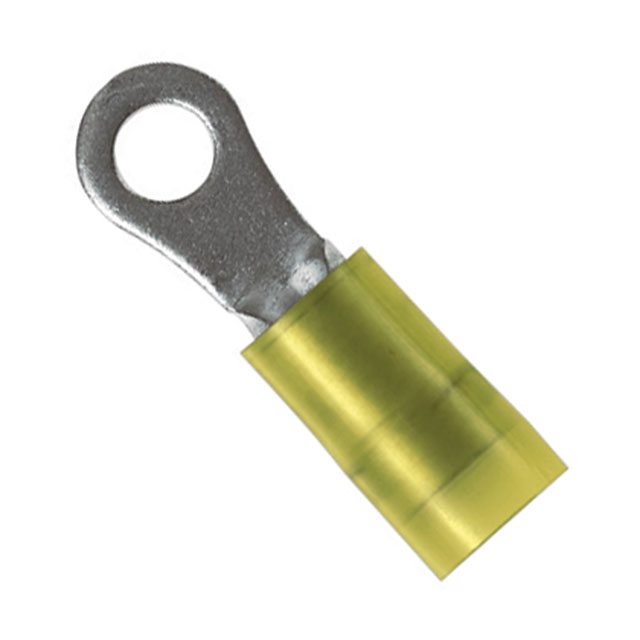

Panduit Corp Pan-Term® PN12-8HDR-2K is a Yellow, insulated circular ring terminal designed for heavy-duty applications. This crimp-style connector accommodates wire gauges from 12 to 16 AWG and features a serrated termination for enhanced conductivity and pull-out resistance. The terminal is constructed from copper with a tin contact finish, ensuring reliable performance. It is designed for an 8 stud size and offers a free-hanging (in-line) mounting type. The overall length is 1.020 inches (25.91mm) with a width of 0.310 inches (7.87mm) and a thickness of 0.050 inches (1.27mm). This component is commonly utilized in industrial automation, automotive, and power distribution systems. It is supplied on Tape & Reel (TR) packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Heavy Duty, Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 12-16 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.020"" (25.91mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
