PN10-8R-E
CONN RING CIRC 10-12AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

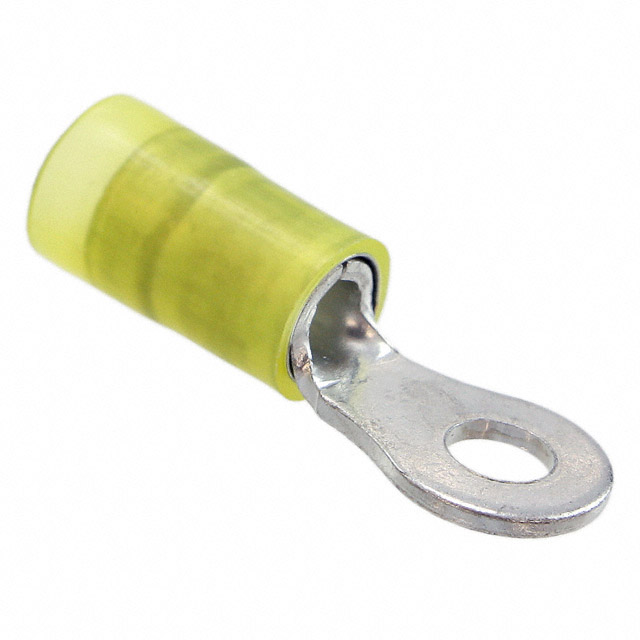

Panduit Corp Pan-Term® PN10-8R-E is an insulated, circular ring terminal designed for crimp termination of 10-12 AWG wire. This yellow terminal features a copper contact material with a tin contact finish and a serrated termination for enhanced wire grip. The PN10-8R-E has a stud size of #8 and a free hanging (in-line) mounting type. Its overall length is 1.060" (26.92mm) with a width of 0.370" (9.40mm) and a thickness of 0.040" (1.02mm). This component is commonly utilized in industrial automation, energy, and transportation sectors where reliable electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.060"" (26.92mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
