PN10-56R-2K
CONN RING CIRC 10-12AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

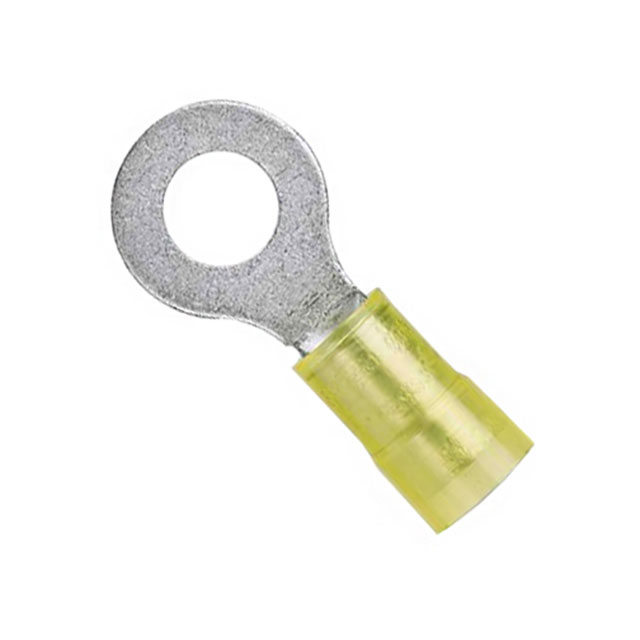

Panduit Corp Pan-Term® PN10-56R-2K is a Yellow, insulated circular ring terminal designed for 10-12 AWG wire. This component features a 5/16 stud size and a serrated termination for enhanced wire grip. The crimp termination ensures a secure connection, with an overall length of 1.210" (30.73mm) and a thickness of 0.040" (1.02mm). Its outer width measures 0.520" (13.21mm). The terminal is supplied on a Tape & Reel (TR) for efficient automated assembly. This versatile component is commonly utilized in industrial automation, telecommunications, and automotive applications where reliable electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | - |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.210"" (30.73mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Contact Material | - |
