PN10-38RX-L
CONN RING CIRC 10-12AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

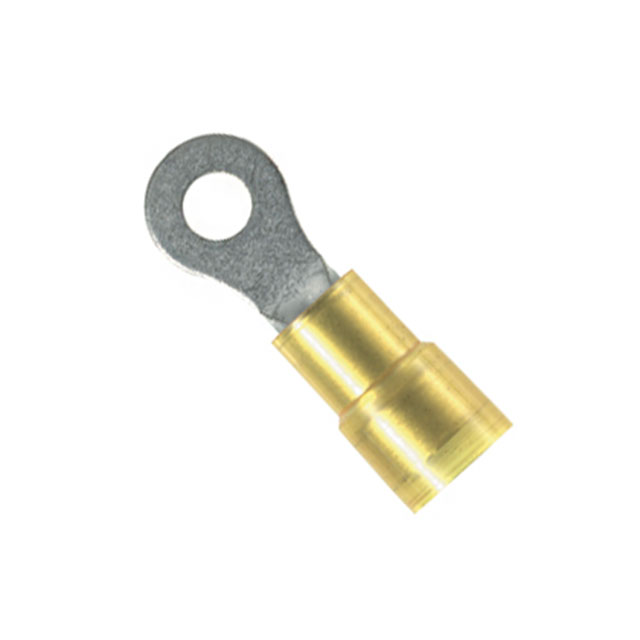

Panduit Corp Pan-Term® PN10-38RX-L is a yellow, insulated circular ring terminal designed for 10-12 AWG wire. This component features a 3/8 stud size and a tin-plated copper contact material for reliable conductivity. The terminal utilizes a crimp termination method with serrated features to enhance wire retention. Its free-hanging, in-line mounting type and overall length of 1.350 inches (34.29mm) facilitate straightforward integration into various electrical systems. The outer width is 0.580 inches (14.73mm) with a thickness of 0.040 inches (1.02mm). This component is commonly employed in industrial automation, power distribution, and automotive applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.350"" (34.29mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
