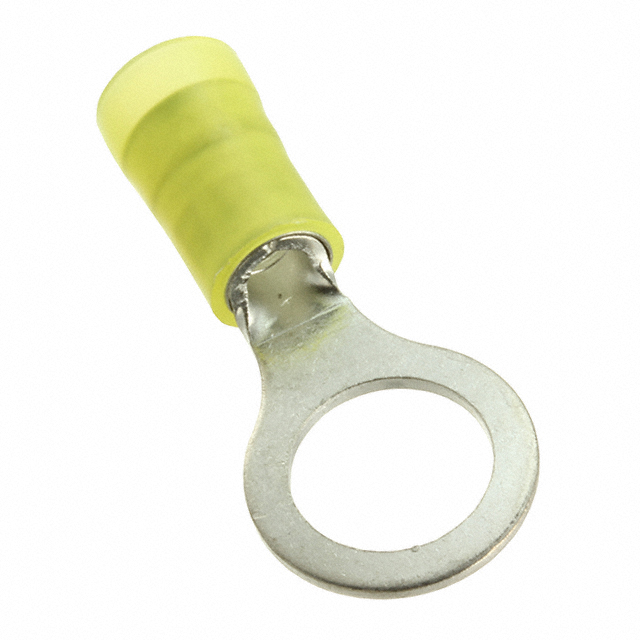

PN10-38R-E
CONN RING CIRC 10-12AWG #3/8Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® PN10-38R-E is an insulated ring terminal designed for robust electrical connections. This circular terminal accommodates wire gauges from 10 to 12 AWG, featuring a 3/8 stud size for secure mounting. The copper contact material with a tin finish ensures excellent conductivity and corrosion resistance. Its insulated design provides critical electrical protection, and the serrated termination feature enhances wire grip and pull-out strength. Manufactured with a free-hanging (in-line) mounting type, this component is suitable for applications in industrial automation, power distribution, and automotive sectors where reliable termination is paramount. The overall length is 1.290 inches (32.77mm) with a terminal thickness of 0.040 inches (1.02mm) and an outer width of 0.580 inches (14.73mm). This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.290"" (32.77mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.580"" (14.73mm) |
| Contact Material | Copper |
