PN10-14R-E
CONN RING CIRC 10-12AWG #1/4Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

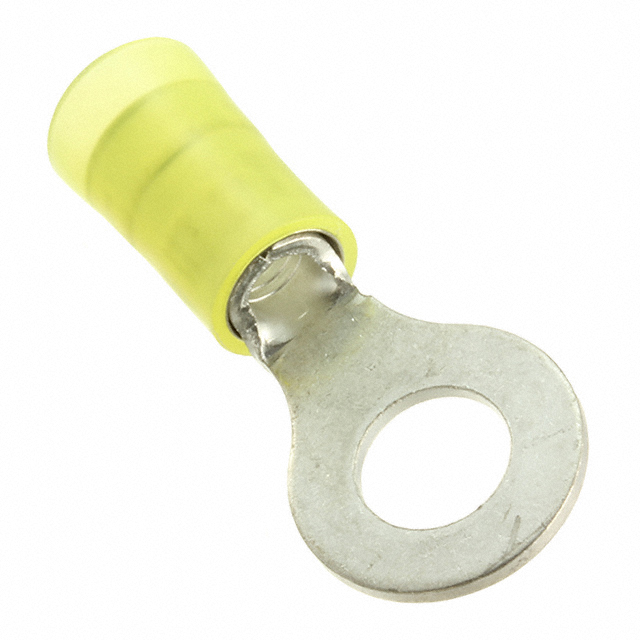

Panduit Corp Pan-Term® PN10-14R-E is an insulated ring terminal connector designed for crimp termination. This circular terminal accommodates wire gauges from 10 to 12 AWG and features a 1/4 stud size. The copper contact material is finished with tin for enhanced conductivity, and the connector includes serrated termination for improved wire grip. With a yellow insulated housing, the overall length is 1.210 inches (30.73mm), and it has a thickness of 0.040 inches (1.02mm) and a width of 0.520 inches (13.21mm) at its outer edges. The mounting type is free hanging (in-line). This component is utilized in various industrial applications, including electrical infrastructure and automotive systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.210"" (30.73mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Contact Material | Copper |
