PN10-10R-E
CONN RING CIRC 10-12AWG #10Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

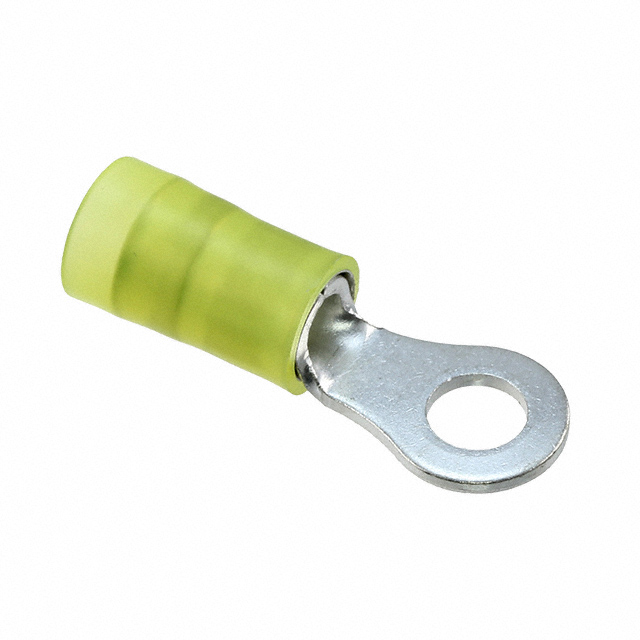

Panduit Corp Pan-Term® PN10-10R-E is a yellow, insulated ring terminal connector designed for crimp termination. This component features a circular terminal type with a 10 stud size, accommodating wire gauges from 10 to 12 AWG. The copper contact material is finished with tin for reliable conductivity. Key features include serrated termination for enhanced wire grip and a free hanging (in-line) mounting type. The overall length is 1.060" (26.92mm), with an outer width of 0.380" (9.65mm) and a thickness of 0.040" (1.02mm). This component is commonly utilized in industrial automation, power distribution, and automotive applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.060"" (26.92mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Contact Material | Copper |
