PMN2-5R-3K
CONN RING CIRC 14-16AWG M5 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

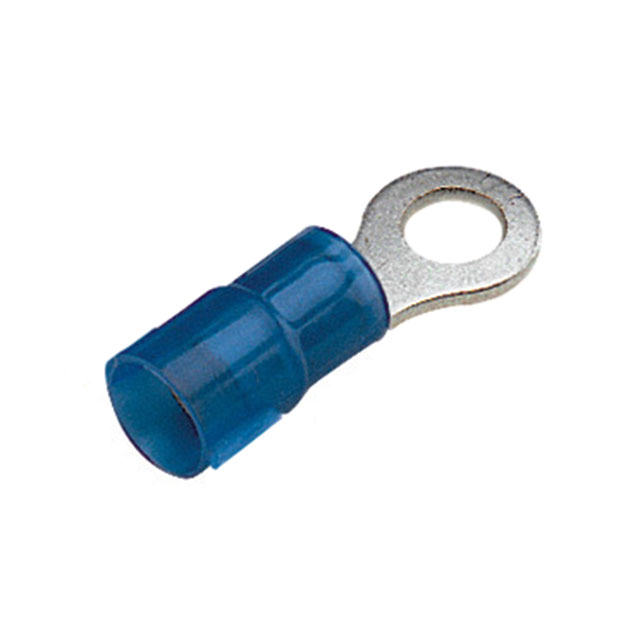

Panduit Corp Pan-Term® PMN2-5R-3K is a blue, insulated ring terminal connector designed for crimp termination of 14-16 AWG wire. Featuring a circular terminal type with an M5 stud size, this component offers a tin-plated copper contact material for reliable conductivity. The serrated termination feature enhances wire retention, ensuring a secure connection. With an overall length of 0.970" (24.64mm) and a width of 0.350" (8.89mm), it provides a robust solution for various electrical applications. The terminal has a thickness of 0.030" (0.76mm) and is suitable for free hanging (in-line) mounting. This Panduit Corp component is commonly utilized in the automotive, industrial automation, and telecommunications sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | M5 Stud |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
