PM1-5R-C
CONN RING CIRC 18-22AWG M5 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

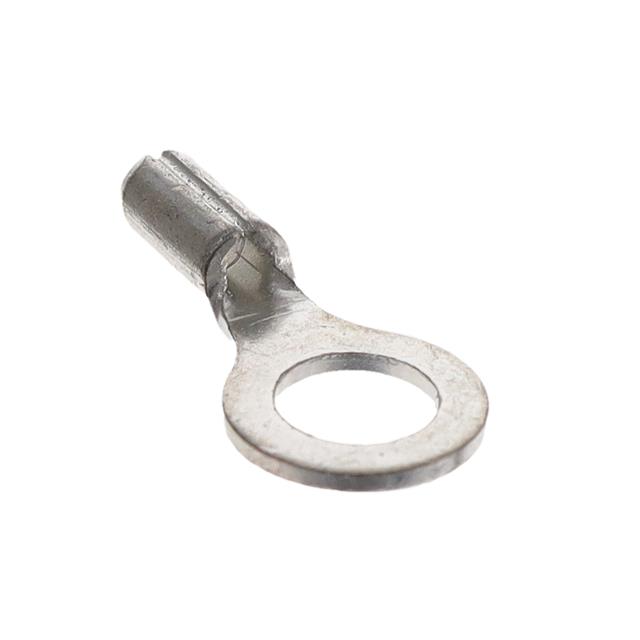

The Panduit Corp Pan-Term® PM1-5R-C is a non-insulated circular ring terminal designed for 18-22 AWG wire. Featuring a brazed seam and serrated termination for enhanced conductivity and secure crimping, this component utilizes a copper contact material with a tin finish. The terminal has an M5 stud size, an overall length of 0.710 inches (18.03mm), and a thickness of 0.032 inches (0.81mm). Its width across outer edges is 0.350 inches (8.89mm). The mounting type is free hanging (in-line), and it is supplied in bulk packaging. This terminal is commonly employed in industrial automation, power distribution, and automotive electrical systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.032"" (0.81mm) |
| Terminal Type | Circular |
| Stud/Tab Size | M5 Stud |
| Length - Overall | 0.710"" (18.03mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
