PK8-56R-T
CONN RING CIRC 8AWG #5/16 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

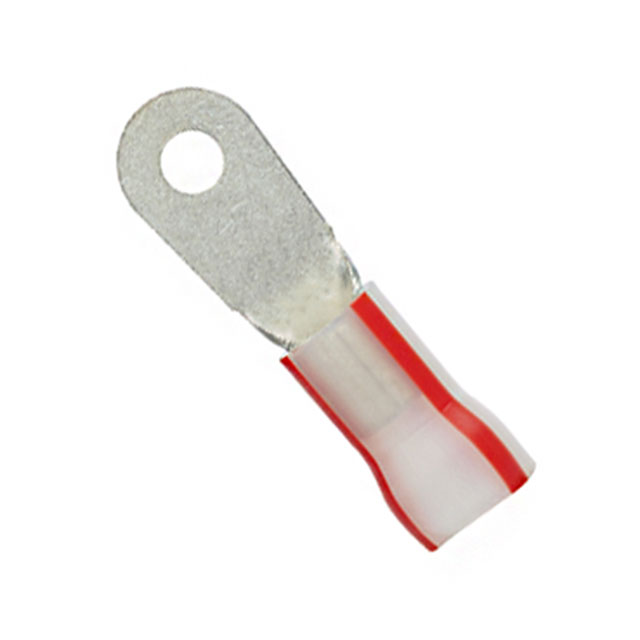

Panduit Corp Pan-Term® PK8-56R-T is an insulated circular ring terminal designed for 8 AWG wire. This connector features a 5/16 stud size and utilizes a crimp termination method. Constructed from copper with a tin contact finish, it offers a brazed seam for enhanced durability and serrated termination for improved wire retention. The overall length is 1.630 inches (41.40mm) with a thickness of 0.040 inches (1.02mm) and an outer width of 0.590 inches (14.99mm). The natural color with a red stripe indicates its wire gauge compatibility. This component is suitable for free-hanging (in-line) mounting applications and is typically found in industrial automation, power distribution, and telecommunications equipment. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Natural, Red Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.630"" (41.40mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.590"" (14.99mm) |
| Contact Material | Copper |
