PK4-56R-T
CONN RING CIRC 4AWG #5/16 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

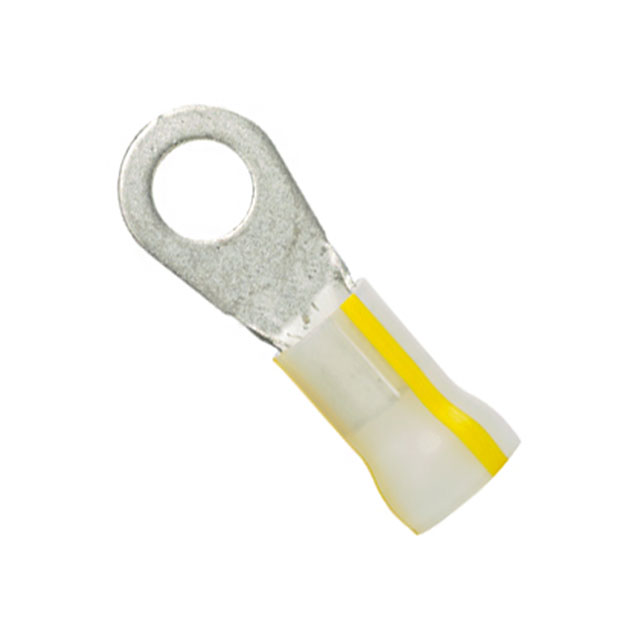

Panduit Corp Pan-Term® PK4-56R-T is a circular ring terminal designed for reliable crimp termination of 4 AWG wire. Featuring a 5/16 stud size and a natural color with a yellow stripe for easy identification, this terminal is constructed from copper with a tin contact finish for optimal conductivity and corrosion resistance. The PK4-56R-T incorporates a brazed seam for enhanced durability and serrated termination to ensure a secure connection. Its insulated design provides electrical protection, and the overall length is 1.930 inches (49.02mm) with an outer width of 0.680 inches (17.27mm) and a thickness of 0.050 inches (1.27mm). This component is suitable for free hanging (in-line) mounting applications and is commonly utilized in industrial power distribution and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Natural, Yellow Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.930"" (49.02mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
