PK18-8R-X
CONN RING CIRC 16-22AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

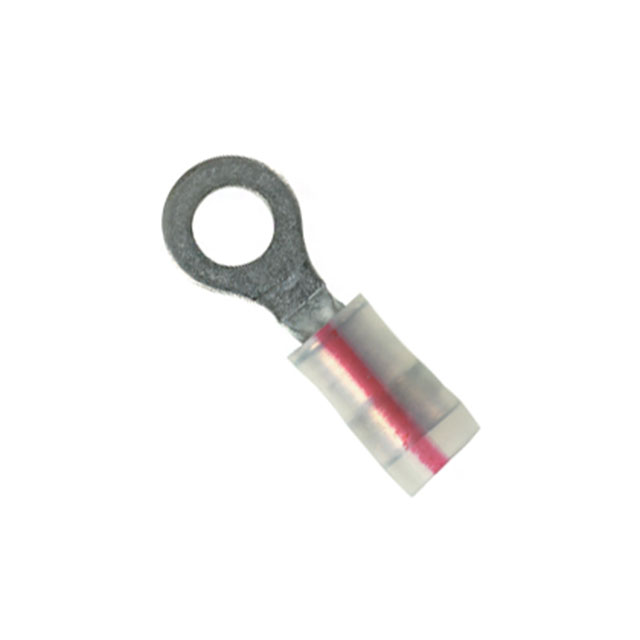

Panduit Corp Pan-Term® PK18-8R-X is an insulated, crimp-style ring terminal connector designed for 16-22 AWG wire. Featuring a natural color with a red stripe indicator and a tin-plated copper contact material, this component ensures reliable electrical connectivity. The circular terminal has an 8 stud size and a free-hanging (in-line) mounting type. Its construction includes serrated termination for enhanced wire grip and a robust insulation. Key dimensions include an overall length of 0.890 inches (22.61mm), a thickness of 0.030 inches (0.76mm), and an outer width of 0.310 inches (7.87mm). This component is commonly utilized in industrial automation, power distribution, and telecommunications applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Natural, Red Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 16-22 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
