PK10-8R-X
CONN RING CIRC 10-12AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

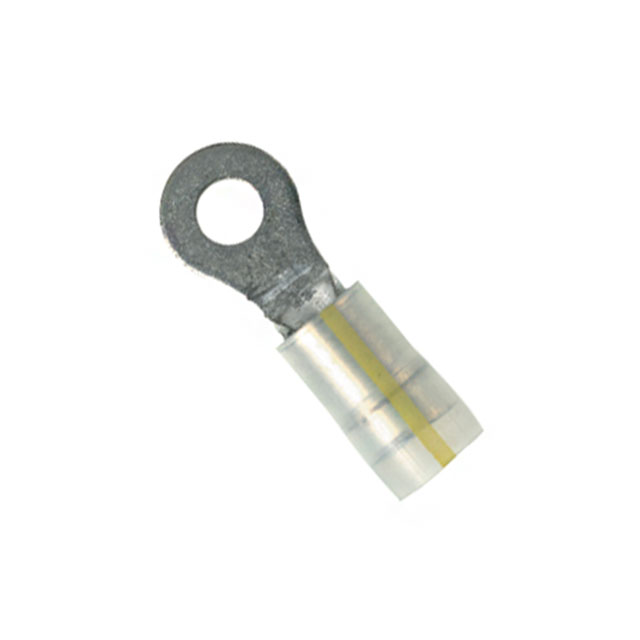

Panduit Corp Pan-Term® PK10-8R-X is an insulated circular ring terminal designed for reliable wire termination. This component accommodates wire gauges from 10 to 12 AWG, featuring a brass contact material with a tin plating for excellent conductivity and corrosion resistance. The serrated termination ensures superior wire grip and electrical performance. With an overall length of 1.060" (26.92mm) and a stud size of #8, this terminal is suitable for free-hanging, in-line mounting applications. The natural color with a yellow stripe facilitates wire gauge identification. Its construction, with a thickness of 0.040" (1.02mm) and an outer width of 0.370" (9.40mm), is optimized for crimp termination. This part is commonly utilized in industrial automation, power distribution, and telecommunications industries.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Natural, Yellow Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.060"" (26.92mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Brass |
