PH14-56R-Q
CONN RING CIRC 14-16AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

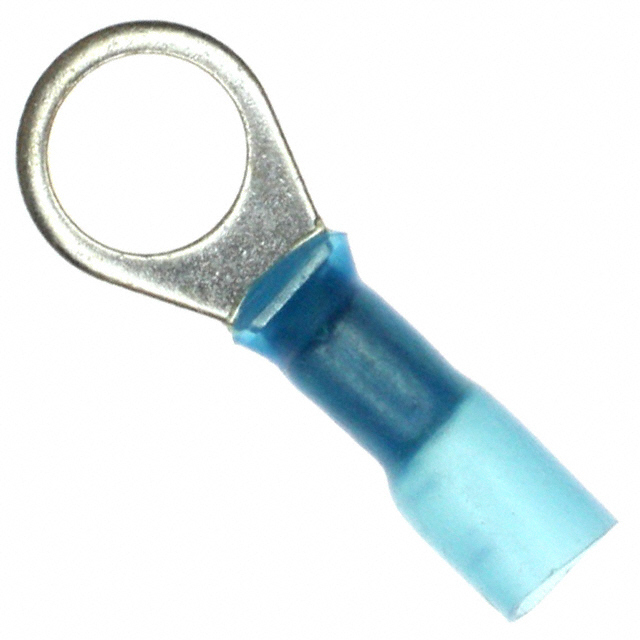

Panduit Corp Pan-Term® PH14-56R-Q is a ring terminal connector designed for robust electrical connections. This insulated component features a circular terminal type with a 5/16 stud size, suitable for #5/16 mounting hardware. Engineered for wire gauges ranging from 14 to 16 AWG, it utilizes a reliable crimp termination method. The connector's construction includes a copper contact material with a tin contact finish for enhanced conductivity and corrosion resistance. A brazed seam ensures durability under demanding conditions. The insulated housing, made with heat shrink material, provides electrical isolation and protection. This component is often specified for applications in the automotive, industrial automation, and power distribution sectors where secure and reliable electrical terminations are paramount. The overall length is 1.240 inches (31.50mm) with an outer width of 0.460 inches (11.68mm). Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated with Heat Shrink |
| Thickness | - |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.240"" (31.50mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
