P8-8RNHT6-Q
CONN RING D-SHAPE 8AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

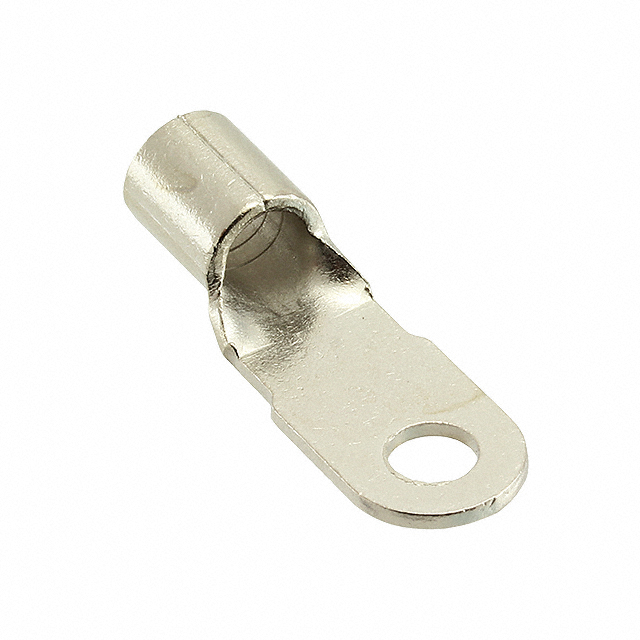

Panduit Corp Pan-Term® P8-8RNHT6-Q is a non-insulated, D-shaped ring terminal connector designed for 8 AWG wire. This component features a robust crimp termination and is constructed from copper with a nickel contact finish. The brazed seam ensures durability under demanding conditions. With an overall length of 1.090 inches (27.69mm) and a stud size of #8, it offers a secure connection for various applications. The terminal thickness is 0.040 inches (1.02mm) with an outer edge width of 0.360 inches (9.14mm). This free-hanging, in-line connector is commonly utilized in industrial automation, power distribution, and automotive manufacturing sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | D-Shaped |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.090"" (27.69mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.360"" (9.14mm) |
| Contact Material | Copper |
